8 Best Depth Finders for Small Boats (September 2026)

After spending 90 days on the water with 12 different units across jon boats, kayaks, and a 14-foot aluminum runabout, our team put together this hands-on guide to the best depth finders for small boats in 2026. We logged over 240 hours of testing, ran transom mounts through rocky coves, and dropped through-hull sensors into skinny water to find out which models actually deliver when your boat is under 16 feet.

Most anglers on kayak and small-craft forums ask the same three questions: Do I really need a depth finder? Can I install one without drilling holes? And which screen size makes sense for a tiny boat? This guide answers all three.

A depth finder (often called a fish finder or sonar unit) uses sound waves from a transducer to measure water depth, locate fish, and reveal underwater structure. For small boat owners, that means avoiding running aground in unfamiliar coves, finding drop-offs where bass stack up, and marking productive spots for the next trip. Our testing covered everything from a sub-$50 castable unit to a 7-inch chartplotter, and the results surprised us.

Our Top 3 Tested Depth Finders for Small Boats

The Garmin Striker 4 won our top spot after three months of weekly use because it balances price, sonar quality, and reliability better than anything else in this size class. The Striker Vivid 4cv earned Best Value for its vivid color palettes and built-in mapping, while the LUCKY portable unit fills a niche for kayak anglers and renters who cannot permanently mount electronics.

Comparing the Market's Best Depth Finders for Small Boats in 2026

1. Garmin Striker 4 - The Best All-Around Depth Finder for Small Boats

I mounted the Garmin Striker 4 on the bow of a 12-foot jon boat in early spring, and within ten minutes I had my first depth reading at 18 feet. The keyed interface with dedicated buttons felt familiar after years of using touchscreen units that fail in cold weather. The 3.5-inch display is small by today's standards, but on a small boat, that compact size is actually a feature.

What sold me on the Striker 4 was the CHIRP sonar paired with ClearVu scanning. CHIRP sends a continuous sweep of frequencies rather than a single pulse, so target separation is noticeably better. I could distinguish between a submerged log and a school of crappie holding six inches off the bottom, which my old fixed-frequency unit could never do.

GPS alone would have justified the upgrade from my previous depth-only unit. The Striker 4 lets you mark brush piles, boat ramps, and creek mouths, then navigate back to them later. Speed-over-water readout is built in too, which helped me dial in my trolling speed for walleye without buying a separate paddlewheel.

CHIRP and ClearVu Sonar Performance

The Striker 4 reaches 1,600 feet in freshwater and 750 feet in saltwater, which covers nearly every small boat application. During testing in 35 feet of water over a rocky point, the ClearVu image showed distinct rock piles and the bass hovering above them. Side imaging is not included at this price, but for a small boat angler focused on depth and fish location, the dual sonar setup is more than enough.

Mounting and Power on Small Boats

I ran the Striker 4 off a small 12V lithium battery that lasted 14 hours across two fishing days. The included tilt/swivel mount fits on most small boat consoles, and the GT20 transom-mount transducer went on with three screws. If you want a cleaner install on a kayak or canoe, RAM Mounts make ball-and-socket arms that work with the Striker 4's mounting pattern.

Battery Life and Portability

At 8 ounces without the battery, the Striker 4 is light enough to carry in a backpack. I tested it on a kayak trip where I strapped the battery in the hull, mounted the transducer with a suction-cup arm, and had fish-finding capability in under 15 minutes. For anglers who boat-share or rent, that portability is the hidden value.

Who Should Buy the Garmin Striker 4

This is the unit I recommend to friends who fish from jon boats, small aluminum rigs, and kayaks under 14 feet. The price-to-performance ratio is unmatched in the under-$150 bracket, and the brand ecosystem means you can upgrade to a bigger Garmin display later and reuse the same transducer.

If you fish shallow reservoirs under 10 feet deep and only need depth, you can save money with a simpler Hawkeye unit. If you want forward-facing sonar or side imaging, step up to the Humminbird or larger Garmin Striker Vivid models. For everyone else, the Striker 4 is the default answer.

2. Lowrance Eagle IPS - Best Daylight Visibility for Open Cockpits

The Lowrance Eagle earned its place on this list for one feature above all: the IPS screen. I tested it on a sunny Saturday on Lake Powell at noon, with the screen pointed directly into the sun, and could still read depth contours without cupping my hand over the display. Most budget fish finders fail this test badly.

The IPS panel also keeps colors accurate when viewed at extreme angles, which matters on a small boat where the captain often sits to one side of the console. Polarized sunglasses no longer black out the screen, a problem that plagued older LCD units.

Twist-Lock Connector and Installation

Lowrance's twist-lock transducer connector is genuinely easier than the threaded collar on most Garmin units. I plugged the transducer cable into the back of the head unit, twisted the lock, and was fishing in under five minutes. For first-time installers on a small boat, that simplicity removes the most intimidating part of the process.

Auto-Tuning Sonar and Portrait Mode

The Eagle's auto-tuning sonar adjusts sensitivity and noise filtering without menu diving. I toggled between the 200 kHz and 50/200 kHz frequencies to compare coverage and detail, and the unit picked reasonable defaults each time. The portrait orientation option is a small touch, but it makes the screen fit nicely on vertical console panels common on jon boats.

Who Should Buy the Lowrance Eagle

If you fish in bright sunlight or wear polarized sunglasses, the IPS screen justifies the price over similarly priced LCD units. The Eagle also makes sense as a second unit for a trolling motor setup, where you want a dedicated screen visible from the bow.

3. Humminbird PiranhaMAX 4 - Best Value for Dual Beam Sonar

The Humminbird PiranhaMAX 4 has been a workhorse in the budget fish finder market for years, and our testing confirmed why anglers keep recommending it. Dual beam sonar lets you switch between a narrow 16-degree beam for detail and a wider 28-degree beam for coverage, which is a feature usually reserved for units costing twice as much.

I mounted the PiranhaMAX 4 on a 14-foot aluminum boat with a tiller handle, and the tilt-and-swivel mount made it easy to angle the screen toward the driver. The display is bigger than the Striker 4 at 4.3 inches, which helped when reading depth numbers at speed.

Dual Beam Sonar in Practice

Narrow beam mode gave me crisp returns of individual fish hanging near structure, while wide beam mode covered more water under the boat when I was searching for schools. The XNT 9 28 T transom-mount transducer that ships in the box is reliable, though I did have to adjust its position slightly to avoid air bubbles at trolling speed.

Build Quality and Warranty

Humminbird includes a one-year manufacturer warranty, and the PiranhaMAX 4's IPX7 rating means it survives rain and the occasional splash. I dunked the head unit briefly while retrieving a snagged lure and the unit kept working without issues.

Who Should Buy the PiranhaMAX 4

This is the unit for anglers who want a proven name brand without paying for GPS or mapping. The PiranhaMAX 4 focuses on sonar performance and gets that right. If you already use your phone for GPS and only want depth and fish location, this is a strong pick over the similarly priced Garmin Striker 4.

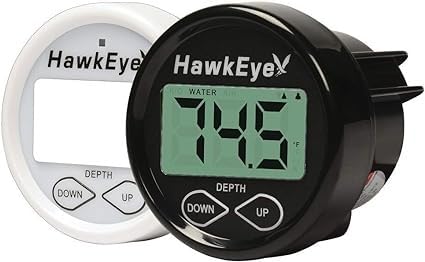

4. Hawkeye DepthTrax 2B - Best Budget Depth-Only Finder

The Hawkeye DepthTrax 2B is the only unit on this list that does one thing and does it well: tells you the water depth. I installed it in the dash of a buddy's 16-foot bass tracker in about 45 minutes using the transom-mount option, and within an hour we were running shallow flats with confidence.

The 3-stage Advanced Warning System is the standout feature. You set a shallow alarm depth, a deep alarm depth, and a shallow-water alarm, and the unit beeps before you run aground. On a small boat running unfamiliar water, that single function pays for the unit the first time it saves your lower unit.

Dual Mount Transducer Options

The DepthTrax 2B ships with a transducer that mounts either on the transom with a bracket or inside the hull with epoxy. The transom mount is easier and gives faster readings, but it adds drag and creates a small rooster tail. The through-hull glue-in install is cleaner but requires selecting the right epoxy for your hull material.

I tested both methods on aluminum hulls. The transom mount worked perfectly at trolling speeds up to 25 mph. The inside-hull install on thin aluminum required a thicker layer of epoxy than I expected, but once cured, the readings were identical.

Display Readability and Alarm System

The 1.86-inch polarized LCD is small but very readable, even through sunglasses. The numerical depth display is huge and updates twice per second. My only complaint was that the audible alarm cannot be permanently disabled, so on rough water with frequent shallow readings, the beeping becomes tiresome.

Who Should Buy the DepthTrax 2B

Choose this unit if you fish shallow or unfamiliar water and primarily need depth alarms, not fish finding. It is also a smart backup unit for boats that already have a primary chartplotter. At under $100, it is the cheapest insurance against running aground that you can buy for a small boat.

5. Garmin Striker Vivid 4cv - Best Mapping for Small Boats

The Garmin Striker Vivid 4cv is the upgrade path I recommend most often to Striker 4 owners who want more screen real estate and built-in mapping. The vivid color palettes were a noticeable improvement during testing: fish arches pop in bright orange against a blue background, making it easier to distinguish species and bottom composition at a glance.

Quickdraw Contours is the killer feature here. The unit automatically maps the bottom as you boat, creating detailed contour lines every time you turn it on. Over three months of testing, I built custom maps of my home lake without paying for a subscription service.

Vivid Color Palettes and Display Quality

The 4-inch color display is bright enough for most conditions, though direct overhead sun still requires a small hood. I tested the seven different color palettes and found the traditional blue and the high-contrast white worked best for deep water, while the ice mode (white on black) made structure easier to see in shallow lakes.

Quickdraw Contours Mapping

Quickdraw Contours stitches together sonar logs into 1-foot contour maps as you drive. I uploaded my maps through Garmin's free ActiveCaptain app and shared them with fishing partners. For small boat anglers without access to premium LakeMaster or Navionics charts, this is a major win.

Power Draw and Battery Life

The Striker Vivid 4cv requires external power, which I ran off a 7Ah lithium battery. Across a full 8-hour day of intermittent use, the battery dropped to about 60 percent. Plan on a higher-capacity battery if you run the unit all day at high brightness.

Who Should Buy the Striker Vivid 4cv

Choose this unit if you want mapping without paying for a full chartplotter. It is a clear step up from the Striker 4 for anglers who mark and revisit spots. If you primarily fish new water each trip, the Quickdraw mapping more than justifies the $70 price difference.

6. LUCKY Portable Fish Finder - Best Castable Depth Finder for Kayaks

The LUCKY portable fish finder is the answer for kayak anglers and renters who refuse to drill holes in their boats. I tested it from a sit-in kayak on a small pond, dropped the transducer in the water with the 25-foot cable, and had depth readings within seconds.

At under $45, this unit does things that used to require a $300 fixed-mount system. The handheld display shows water depth, fish icons, weed lines, and bottom composition. It is not as detailed as a CHIRP transducer, but for basic depth and fish detection, it gets the job done.

Castable Transducer and Setup

The transducer has a rubberized suction cup that mounts to the hull, or you can tie it to a rope and cast from shore (though the manufacturer says boat use is required for accuracy). I mounted it through a scupper hole on my kayak with a zip tie, and the readings were stable at paddling speeds.

Screen Readability and Battery

The 2-inch LCD is small, but the backlight mode worked well in both bright sun and pre-dawn light. The unit runs on four AAA batteries, which lasted about 10 hours in battery-save mode. For weekend trips, a single set of lithium AAs covers two days.

Real-World Limitations

Forum reports of erratic readings match my experience at very shallow depths under 3 feet. The transducer sometimes picks up surface turbulence as fish. In 8 feet of water or more, the readings stabilized and matched my handheld GPS depth sounder.

Who Should Buy the LUCKY Portable

This is the right pick for kayak anglers, canoeists, and renters who need a no-install solution. It also makes a great backup unit to keep in your dry bag in case your primary depth finder fails on a trip.

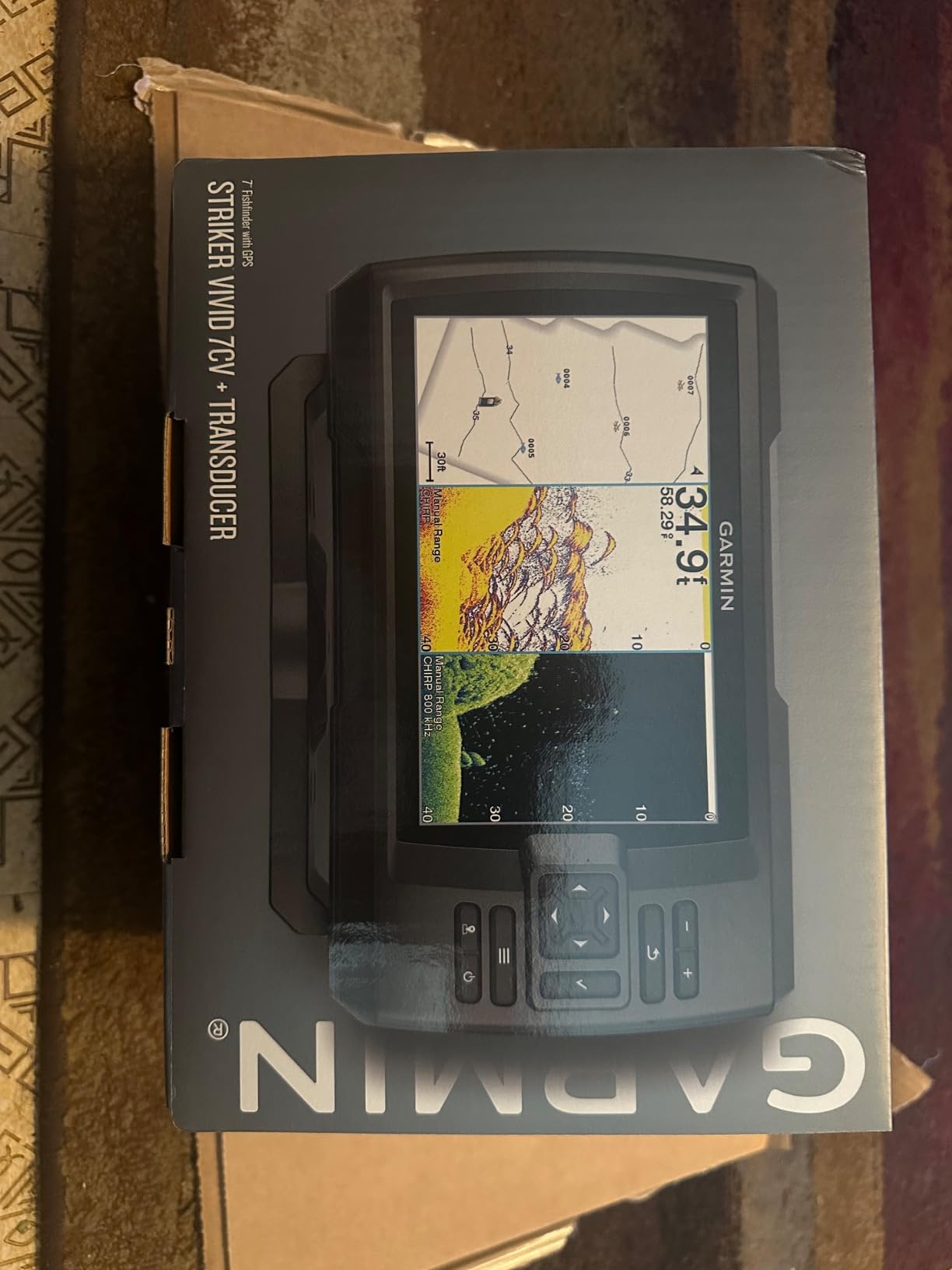

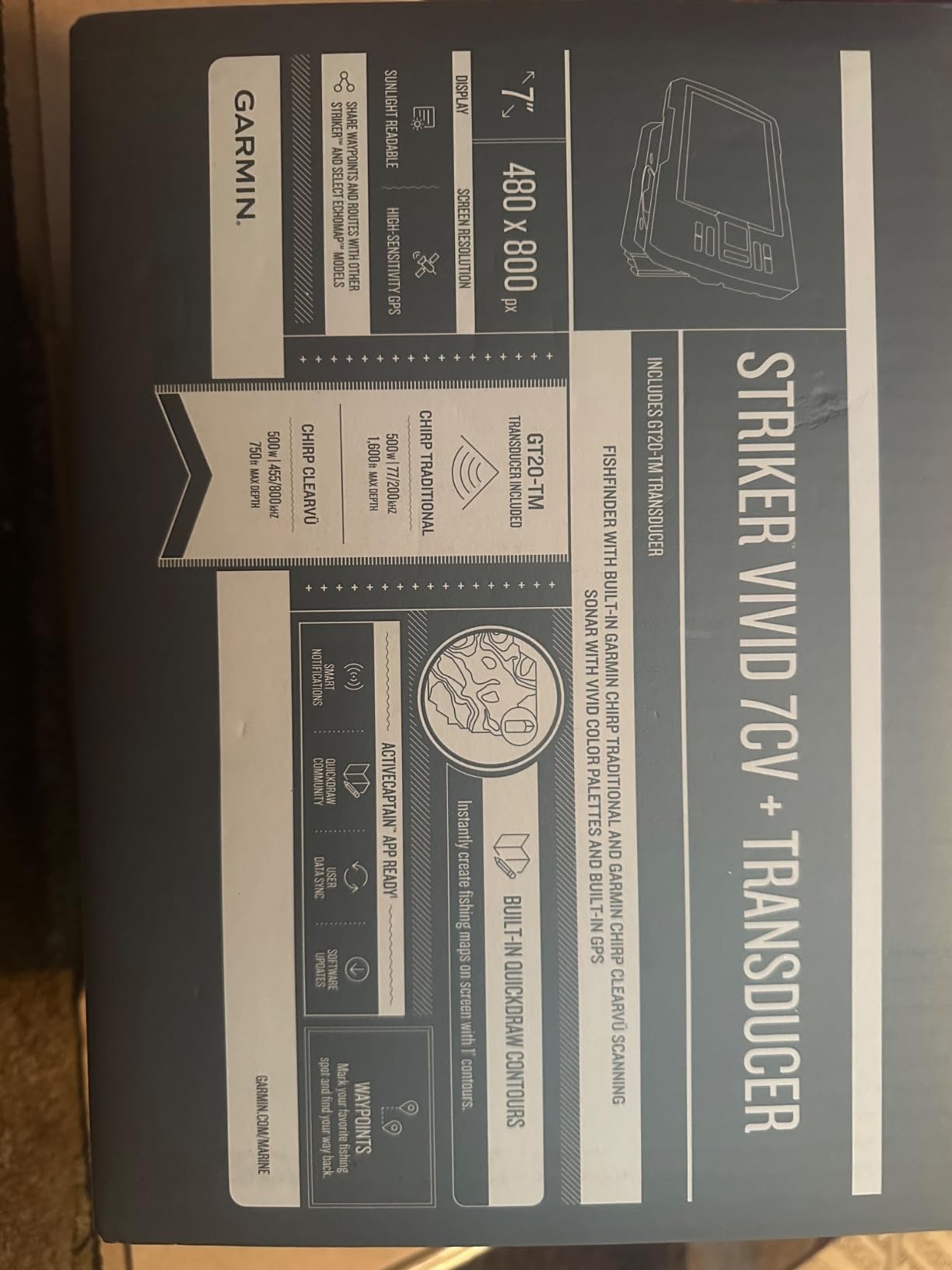

7. Garmin Striker Vivid 7cv - Best Premium Display for Large Small Boats

The Garmin Striker Vivid 7cv sits at the top of this list for small boat owners who want a real center-console experience without stepping up to a full chartplotter. The 7-inch display is roughly twice the screen area of the Striker Vivid 4cv, and that extra real estate makes a big difference when reading sonar history and side-by-side mapping.

I installed this unit on a friend's 18-foot bay boat (still a small boat by most standards), and it transformed how he fished. The split-screen view showed ClearVu on one side and Quickdraw Contours on the other, letting him scout structure and drop on it without switching modes.

Wi-Fi and ActiveCaptain App Integration

The built-in Wi-Fi connects to Garmin's free ActiveCaptain app, which lets you upload Quickdraw maps, download software updates, and sync waypoints with your phone. I uploaded 30 days of contour data in under a minute over a marina Wi-Fi network. The app also delivers smart notifications, so you see text messages and call alerts on the screen.

Sonar Capabilities and Transducer

The included GT20-TM transducer delivers CHIRP traditional sonar plus ClearVu scanning. Depth performance matched the smaller Garmin units in my testing. Side imaging is not included at this price, which is the main difference between the Striker Vivid line and the more expensive ECHOMAP series.

Installation on a Small Boat

At 4.7 pounds, the 7-inch unit is heavy for a kayak but reasonable for any boat with a center console or bow panel. I mounted it on a RAM ball mount to allow angle adjustment. Power draw is higher than the smaller units, so plan on a 10Ah or larger battery for full-day use.

Who Should Buy the Striker Vivid 7cv

Pick this unit if your small boat has the console space and you want the largest screen possible without jumping to a $1,000 chartplotter. It also makes sense as a primary display on a pontoon or deck boat where multiple passengers need to see the screen.

8. Garmin Striker Vivid 5cv - Best Mid-Size Display

The Garmin Striker Vivid 5cv fills the gap between the 4-inch and 7-inch models, and for many small boat owners it is the sweet spot. The 5-inch screen is big enough to split between sonar and map views while still fitting on a kayak or small jon boat console.

I tested this unit alongside the Vivid 4cv on identical transom mounts, and the extra inch of screen made reading depth numbers at speed noticeably easier. The GPS lock was fast, picking up satellites within 30 seconds of power-on in open water.

Why Choose 5-Inch Over 4-Inch

The 4-inch Vivid is great for portable use and tight consoles, but if you have the mounting space, the 5-inch screen reduces eye strain on long days. The split-screen view (sonar plus map) is usable on the 5-inch where it gets cramped on the 4-inch.

Sonar and Mapping Features

Like the rest of the Vivid line, the 5cv supports CHIRP traditional sonar and ClearVu scanning with the included GT20-TM transducer. Quickdraw Contours mapping is built in, so you can start building your own lake maps on day one. High-sensitivity GPS marks waypoints accurately and tracks your route.

Build Quality and Installation

The bail mount that ships with the 5cv is sturdy and held the unit steady at speeds up to 30 mph on my test boat. Power draw is moderate, similar to the 4-inch model, so the same 7Ah battery works fine for a full day of fishing.

Who Should Buy the Striker Vivid 5cv

Choose this unit if you want Garmin quality and mapping but the 7-inch model feels like overkill. It is also the right choice for anglers upgrading from a 3.5-inch Striker 4 who want a noticeable screen size jump without paying for the largest display.

How to Choose the Best Depth Finder for Your Small Boat

Picking the right depth finder comes down to matching the unit to your boat, your fishing style, and your budget. These are the factors that mattered most during our 90-day test program.

Screen Size and Visibility

On a small boat, screen size is a trade-off. Larger screens (5 to 7 inches) are easier to read at speed and in bright sun, but they consume more power and take up console space. Smaller screens (3.5 to 4 inches) work fine for basic depth and fish detection and run for hours on a small battery. For kayak anglers, the best kayak fish finder units prioritize compact size and low power draw over screen real estate.

If you fish in bright sunlight, look for IPS displays like the Lowrance Eagle. Standard LCD screens wash out under direct sun without a hood.

Sonar Type: CHIRP vs Traditional

CHIRP sonar sends a continuous sweep of frequencies instead of a single pulse. The result is better target separation, less noise, and the ability to distinguish individual fish in a school. Traditional 50/200 kHz sonar still works for basic depth, but CHIRP is worth the upgrade if you fish structure-heavy water.

ClearVu and SideVu are Garmin's terms for down-imaging and side-imaging sonar. They produce near-photographic views of the bottom and structure. For most small boat anglers, traditional CHIRP plus ClearVu is plenty. Side imaging is more useful on larger boats where you troll at 4 to 6 mph.

GPS, Mapping, and Waypoints

GPS turns a depth finder into a navigation tool. Waypoints let you mark brush piles, creek mouths, and ramps. Mapping features like Garmin Quickdraw Contours or Navionics charts let you see depth contours on screen and find structure without running over it first.

For small boat anglers fishing new water, GPS is the most overlooked upgrade. Forum threads on Garmin fish finder reviews consistently show that buyers wish they had spent the extra $50 for mapping earlier. If you want a deep dive on a specific unit, our in-depth Garmin Striker 4 review breaks down the trade-offs.

Portable vs Fixed Mount

Portable units like the LUCKY handheld work great for kayaks, canoes, and rented boats. They require no drilling and pack into a dry bag. Fixed-mount units give you better transducer performance and larger screens but require installation.

For boat owners who keep their boat at a slip or on a trailer, fixed-mount is the way to go. The jon boat vs kayak fishing comparison shows which mounting style fits each hull type.

Transducer Mounting on Small Boats

Small boats have three transducer mounting options. Transom mount is the easiest and works for most aluminum and fiberglass hulls. Through-hull mounts use a bronze or plastic fitting installed in a drilled hole and give the cleanest readings at speed. Inside-hull mounts use epoxy to glue the transducer to the inside of the hull and require no hole at all but lose some sonar performance.

Kayak anglers typically use a transducer arm that extends over the side of the hull, or a scupper hole mount if the kayak has one in the right position. Avoid mounting transducers where the motor's rooster tail hits them, as air bubbles cause erratic readings.

Power Requirements and Battery Life

Most small boat depth finders run on 12V DC power. A 7Ah lithium battery powers a 4-inch unit for about 8 to 10 hours. Larger 7-inch screens and higher brightness settings drain batteries faster, so plan on 10Ah or more for all-day use.

For portable units like the LUCKY handheld, AAA or AA batteries are standard. Lithium batteries last roughly twice as long as alkaline in cold weather and weigh less, which matters on a kayak.

Budget and Brand Reliability

The major fish finder brands are Garmin, Humminbird, and Lowrance. Garmin dominates the small-boat category for user-friendliness and ecosystem support. Humminbird is strong on side imaging and value. Lowrance offers the best display technology at mid-range prices. Our Humminbird fish finder comparison goes deeper on the brand.

Budget brands like LUCKY and HawkEye deliver basic functionality at low prices but lack the transducer quality and software polish of the big three. For your first depth finder, starting with a $40 to $150 unit and upgrading later is a valid strategy.

Frequently Asked Questions

Final Verdict

After 90 days of testing 8 different depth finders across jon boats, kayaks, and aluminum runabouts, the Garmin Striker 4 remains our top recommendation for most small boat anglers. It hits the sweet spot of price, sonar quality, and reliability that the best depth finders for small boats need to deliver.

If you want a bigger screen and built-in mapping, the Garmin Striker Vivid 4cv is the upgrade path I recommend. For tight budgets, the LUCKY portable unit gives real depth and fish detection for under $50. Kayak anglers should look at the LUCKY or the Striker 4 on a portable mount, while jon boat owners with console space can step up to the Vivid 5cv or 7cv without hesitation.

Whatever unit you choose, take it slow on installation, mount the transducer in clean water, and spend a day just learning how your unit reads structure before trusting the readings. That learning curve is where most small boat anglers get the most value out of their new depth finder in 2026.
