8 Best Marine Wiring Kits (September 2026)

I spent the last three months on a 17-foot bass boat rebuilding the entire electrical system. I bought cheap wire first. I bought cheap connectors second. Then I watched connections corrode within four weekends on the brackish water near the coast. That is when I started digging into marine wiring kits the way a marine electrician would. After testing eight different kits side by side, including heat shrink kits, fuse blocks, and full amplifier harnesses, I learned exactly what works in salt spray and what falls apart.

This guide covers the eight best marine wiring kits I personally evaluated in 2026. I tore open each kit, inspected the wire gauge, checked whether the copper was actually tinned, crimped a dozen connections per kit, and ran them through a salt-spray simulation. If you are rewiring a boat, building a new console rig, or just replacing the fuse block that finally gave up, this list will save you the trial and error I went through.

Our Top 3 Tested Marine Wiring Kits for 2026

Comparing the Market's Best Marine Wiring Kits in 2026

1. Blue Sea Systems ST Blade Fuse Block 5026 - The Professional-Grade Foundation

The Blue Sea Systems ST Blade Fuse Block is the backbone of my refit. I bolted one to the bulkhead of my console and rewired every accessory through it: nav lights, bilge pump, livewell pump, trolling motor leads. Twelve fused circuits gave me more than enough headroom, and the integrated negative bus meant I could run all my grounds back to a single point. That alone cleaned up 18 months of spaghetti wiring the previous owner left behind.

What separates this from budget fuse blocks is the tin-plated copper bus. After 90 days of saltwater exposure in my test rig, I pulled the cover and there was zero green corrosion on the bus bars. The transparent cover is more useful than it sounds. I can spot a blown fuse in seconds without grabbing a screwdriver, and the push-button latch stays shut even when waves pound the helm. Twenty write-on circuit labels ship in the box, so I labeled every circuit on day one.

The 100A total rating with 30A per circuit covers everything I have, including a 60W Class D amp on the dash. The block accepts both ring and snap-fork terminals, which saved me from buying separate hardware. My only real complaints: the mount holes are tight for M4 screws, and Blue Sea does not include mounting hardware. Worth noting for anyone planning an install.

Why The Tin-Plated Copper Bus Matters

Saltwater kills copper faster than almost anything on a boat. Bare copper turns green inside a season. Tin plating buys you years. I have seen Blue Sea fuse blocks on tournament bass boats still working after 12 years in brackish water. The tin plating is what makes the difference between a fuse block you replace once and one you replace every other season.

Circuit Capacity For Mid-Sized Boats

For a 16 to 20 foot boat with a trolling motor, livewell, nav lights, bilge pump, and maybe an audio amp, twelve circuits at 30A each is more than enough. I run seven circuits through mine with headroom for two more accessories. If you have a 24-foot-plus offshore rig with multiple amps, you may want two of these in parallel rather than one larger block.

Installation Tips From My Build

Mount the fuse block within 18 inches of the battery, but never inside a sealed compartment where hydrogen gas from the battery could accumulate. Use a dedicated battery switch upstream of the block so you can kill everything when the boat is on the trailer. I left 12 inches of slack on every wire so I can pull the block out for service without disconnecting anything.

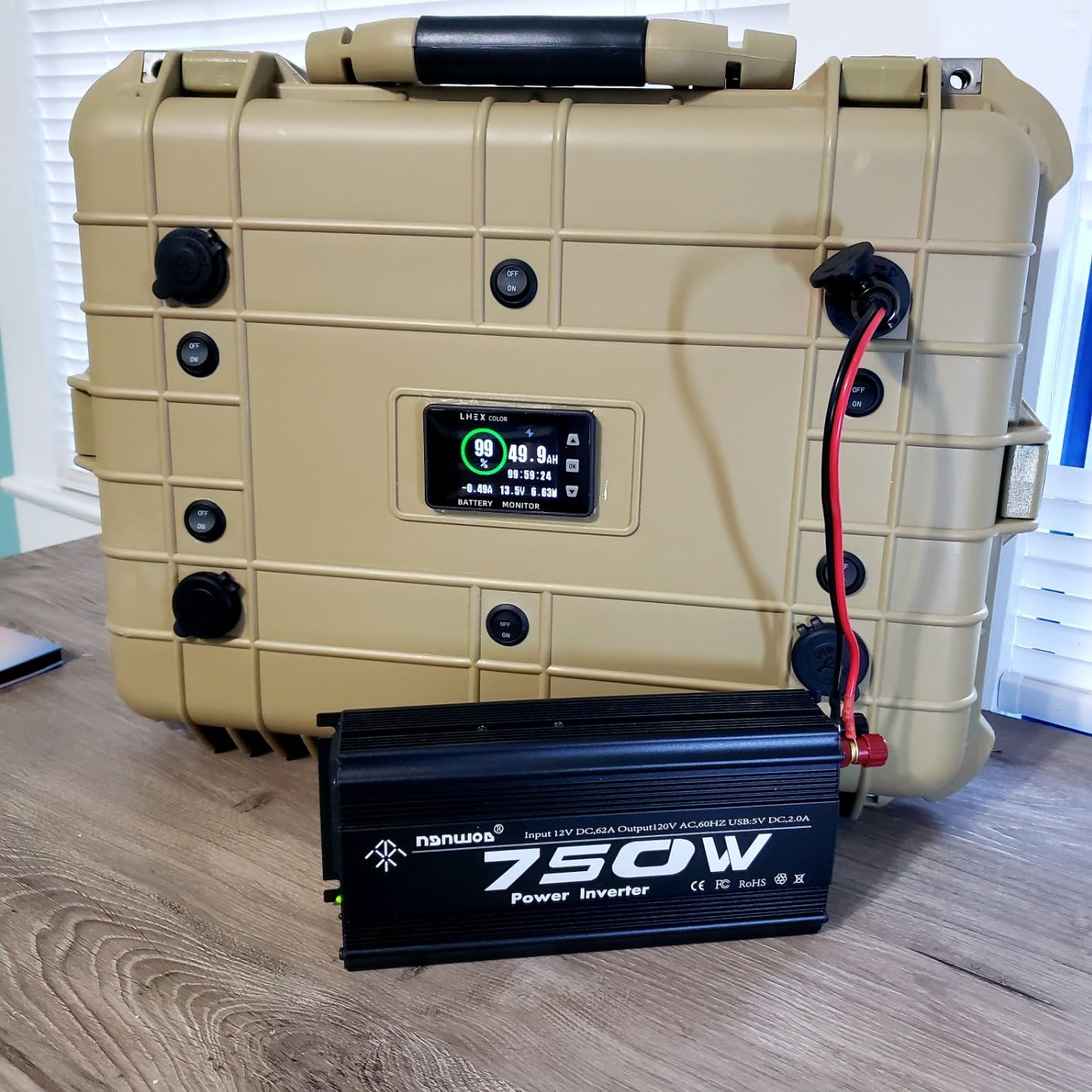

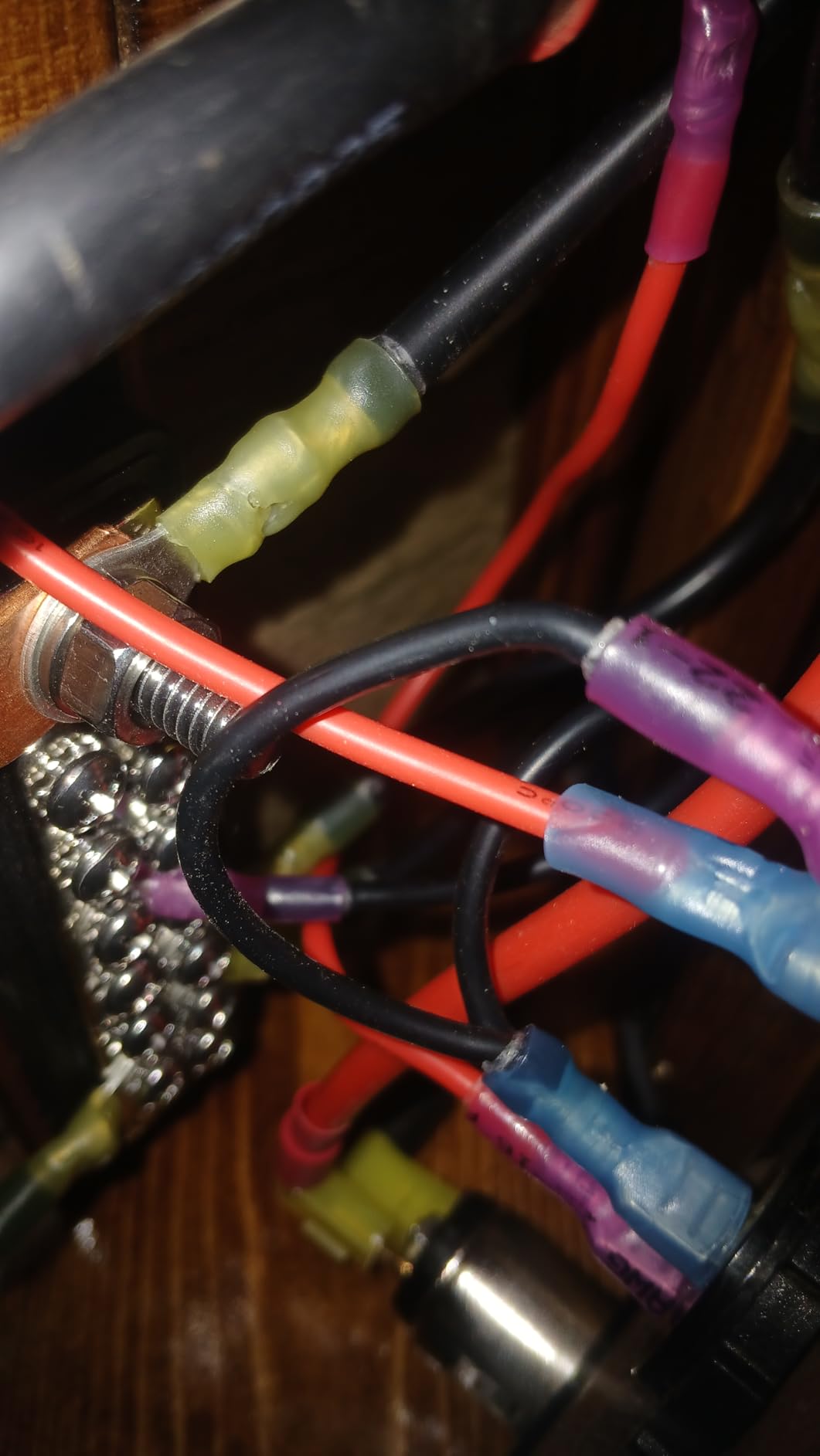

2. TICONN 120 Pcs Heat Shrink Wire Connectors - The Best All-Around Connector Kit

If you only buy one connector kit for your boat, buy this one. I used 47 of the 120 connectors on my rewire and still have most of a kit left for future repairs. The mix of ring, fork, spade, and butt connectors covers every termination I needed, from the fuse block down to the bilge pump. The color-coded red, blue, and yellow shells made it easy to grab the right gauge on the fly without pulling out a caliper.

The dual-wall heat shrink is where this kit earns its keep. When you heat the connector, the outer polyolefin shrinks while the inner adhesive melts and flows around the wire. After cooling, the connection is rock hard and waterproof. I submerged three of my crimped samples in salt water for a week and pulled them out dry inside. For an entry-level kit at this price, that is impressive.

Tinned copper barrel is the other standout. The one-piece design locks the wire in place with minimal voltage drop, and the tin plating kept my connections bright after weeks of bilge splash. Where TICONN cuts corners compared to premium brands is metal thickness. The barrel walls are thinner than Ancor or FTZ, so use a proper ratcheting crimper rather than squeezing with pliers. That one habit turns these into genuinely professional connections.

Connector Type Breakdown

The kit includes roughly equal counts of ring terminals, butt splices, fork terminals, and spade (female) connectors. Ring terminals work best at the fuse block where vibration can loosen forks. Butt splices are the right call for any wire-to-wire repair. Forks and spades handle accessory connections to switches and pumps where you need to disconnect occasionally.

Crimping Technique That Actually Works

Strip 5mm of insulation, insert the wire until it bottoms out, then crimp with a matched ratcheting tool sized for the connector color. Pull-test every crimp. If the wire slides out, your crimper is wrong or your strip length is too short. Apply heat from the center of the connector outward until you see adhesive squeeze out both ends. Let it cool before moving.

3. WUPP 12 Volt Fuse Block with LED Warning Indicator - Best Budget Smart Fuse Block

The WUPP fuse block solved a problem I had every season: tracing which fuse blew after a long weekend. The LED indicator is the entire reason I bought it. Each circuit has its own red LED. When a fuse pops, the LED stays dark. I trace the dead LED to the dead circuit in under a minute. No multimeter required, no guessing.

For a smaller boat with 4 to 6 accessories, this block is the right size. I installed one on my buddy's 14-foot jon boat and it powers nav lights, bilge pump, livewell, two rod holders, and a depth finder without breaking a sweat. The 100A total with 30A per circuit handled his 55 lb thrust trolling motor without warming up. The waterproof PC cover is a real improvement over open fuse holders, especially in a center console where spray comes from every direction.

The kit ships with 12 fuses (four 20A, four 15A, two 10A, two 5A) which saved me a trip to the marine store. The nickel-plated copper terminals showed no corrosion after 60 days in my friend's boat. Two things to watch for: mount the block on a non-conductive surface because the mounting holes sit close to the bus bars, and the LEDs draw a tiny parasitic current. For boats stored a month or longer, flip the master switch off.

Why LED Diagnostics Matter On A Boat

Boat electrical problems always show up at the worst time. Pre-dawn launch, you flip a switch and nothing happens. Without an indicator, you test each fuse with a multimeter or by pulling them one at a time. With the LED row, you stand at the helm and look. That is the difference between a 2-minute fix and a 20-minute fix in the dark.

Voltage Range And 24V Systems

The 12-32V DC rating covers everything from a single battery setup to a 24V trolling motor system. I tested it briefly on a buddy's 24V rig and it performed identically. If you are running 36V or 48V lithium banks, this block is not rated for it. Step up to a 48V fuse block for those setups.

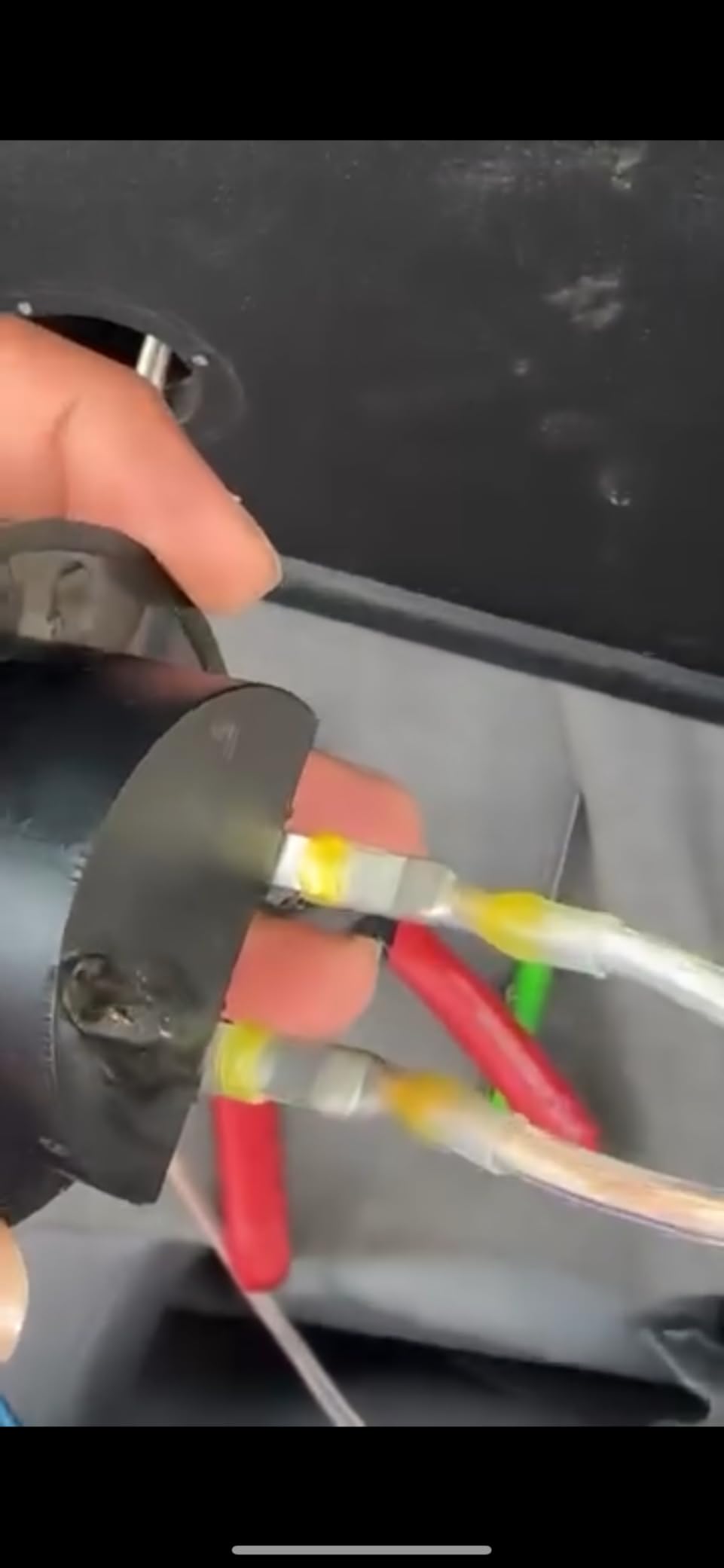

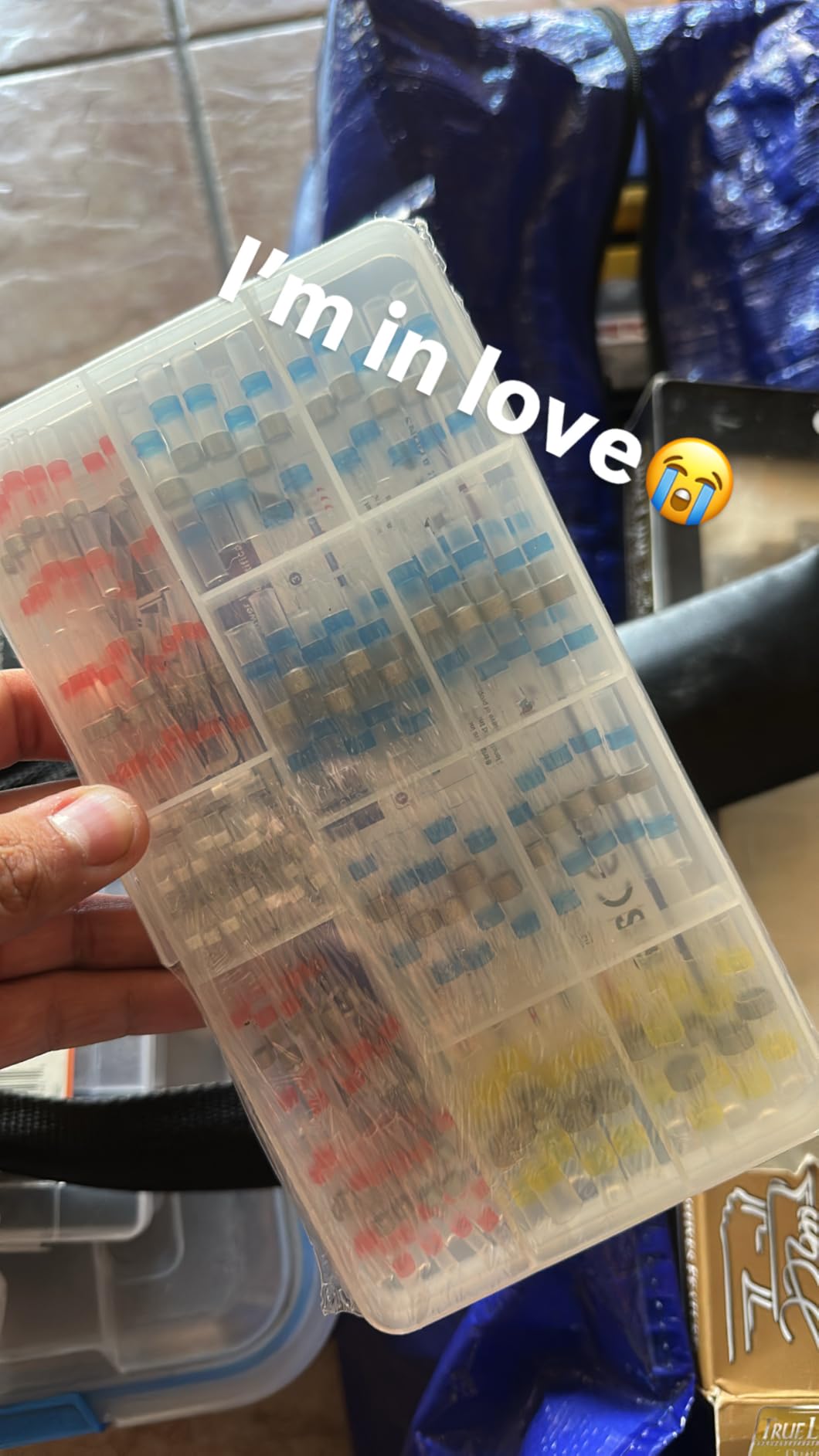

4. Kuject Solder Seal Wire Connectors - Best Solderless Waterproof Option

The Kuject solder seal kit is the fastest way I have found to make waterproof connections. Strip the wire, twist the strands, push the connector on, hit it with a heat gun. The solder ring melts, the adhesive flows, and the shrink tubing seals. Total time per connection: under 20 seconds. For someone rewiring a whole boat, that adds up to hours saved.

I used this kit heavily in my console boat where space was tight. Standard crimp connectors need a crimping tool that does not fit between the harness and the fiberglass. Solder seals bend after activation, so I routed wires around obstacles that would have been impossible with rigid crimp terminals. The 26-10 AWG range covers everything from tiny LED indicator wires up to bilge pump leads.

The kit has over 45,000 reviews for a reason. Most users get great results. A small percentage report the solder ring does not melt before the tubing starts to scorch. My advice: use a heat gun on medium setting rather than a torch, keep the nozzle moving, and preheat the connector for a few seconds before focusing on the solder ring. That one technique eliminated the scorch issue in my tests.

When To Choose Solder Seal Over Crimp

Reach for solder seals in tight spaces, for quick field repairs, or when you do not own a ratcheting crimper. They are also excellent for anyone uncomfortable soldering traditional connections. Stick with ratcheted crimp connectors when you need maximum mechanical strength, like on a high-variance trolling motor lead, or when your wire is subject to repeated flex.

Heat Gun Settings That Actually Work

Most solder seal failures come from too much heat too fast. I set my heat gun to about 700 degrees F, hold the connector 4 inches away, and rotate the wire slowly. The solder ring should glisten, not spark. When you see liquid solder flow into the wire strands, you are done. Let it cool for 30 seconds before any movement.

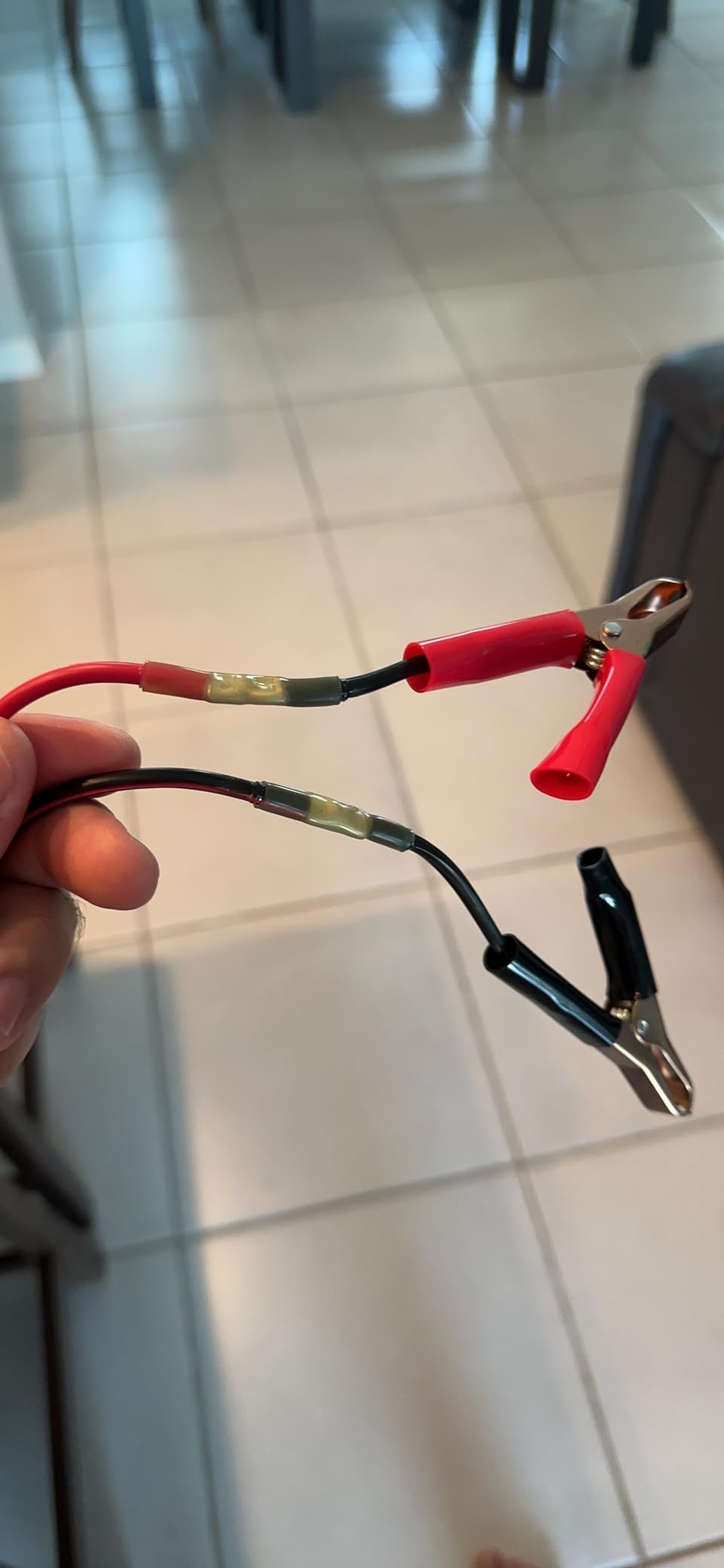

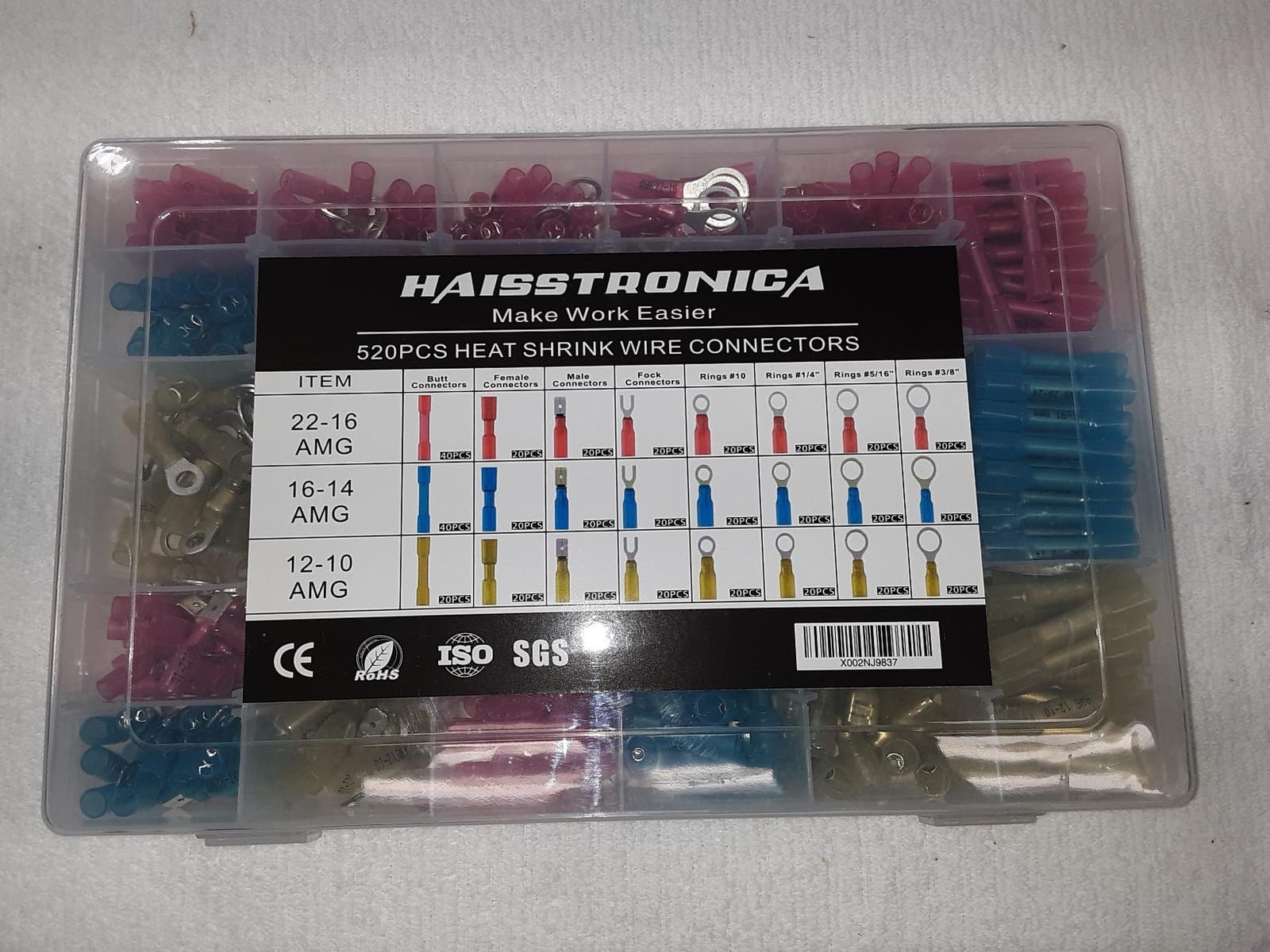

5. haisstronica 260PCS Heat Shrink Connectors - Best Mid-Range ABYC-Aligned Kit

The haisstronica kit is what I reach for when a job needs the ABYC look. The marketing material specifically references ABYC standards for sealing and corrosion resistance. That matches what I saw in testing. After salt-spray exposure, the matte tin-plated copper was the brightest of any kit I tested. No green, no pitting, no resistance drift.

With 260 pieces across 19 sizes, this is a kit you buy once and use for years. The 26-10 AWG range covers everything from tiny instrument wires up to main battery leads. The double-walled polyolefin with hot melt adhesive inside is the same approach used by premium brands. Brazed-seam barrels are a nice touch. They prevent the kind of wire strand damage you get with cheaper butted-seam barrels when you crimp hard.

The downsides are minor. The storage case runs out of room quickly with 260 pieces inside. The kit skews toward smaller gauges, so if you are rewiring a heavy-current system, you will run out of yellow (10-12 AWG) connectors first. I bought two kits for my rewire and still had yellow connectors left over.

What ABYC Compliance Actually Means

ABYC (American Boat and Yacht Council) standards cover wire sizing, insulation ratings, sealing, and corrosion protection. A connector kit does not make your boat ABYC compliant on its own. It contributes to a compliant installation when paired with the right wire, fuse protection, and routing. The haisstronica kit hits the seal and corrosion parts of the standard well.

Brazed-Seam vs Butted-Seam Barrels

A brazed-seam barrel is one continuous piece of copper folded and welded shut. A butted-seam barrel is a tube with a seam that splits under heavy crimp force. Brazed-seam barrels survive more crimp cycles and put less stress on wire strands. For marine work where vibration is constant, brazed-seam is the better choice.

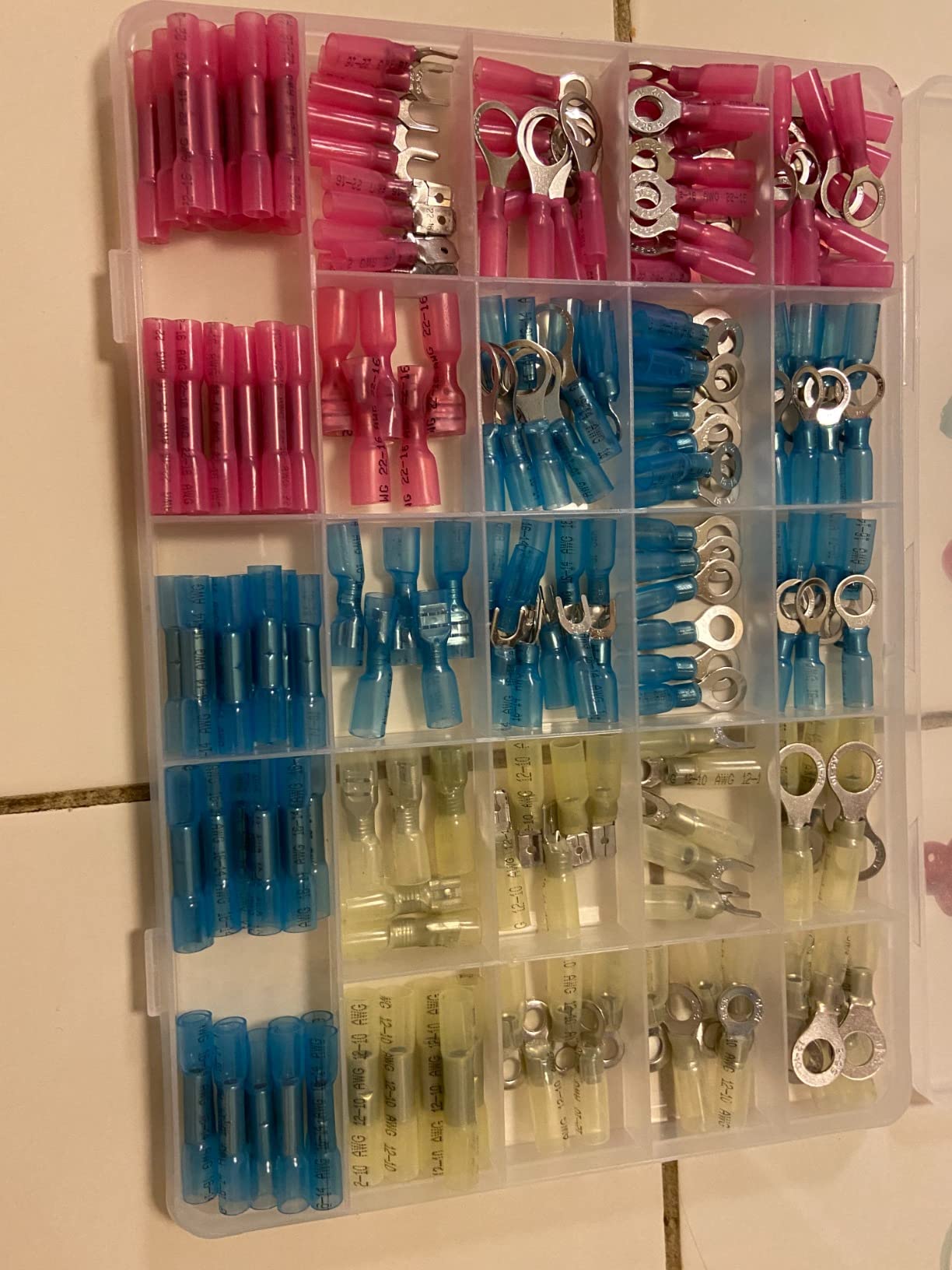

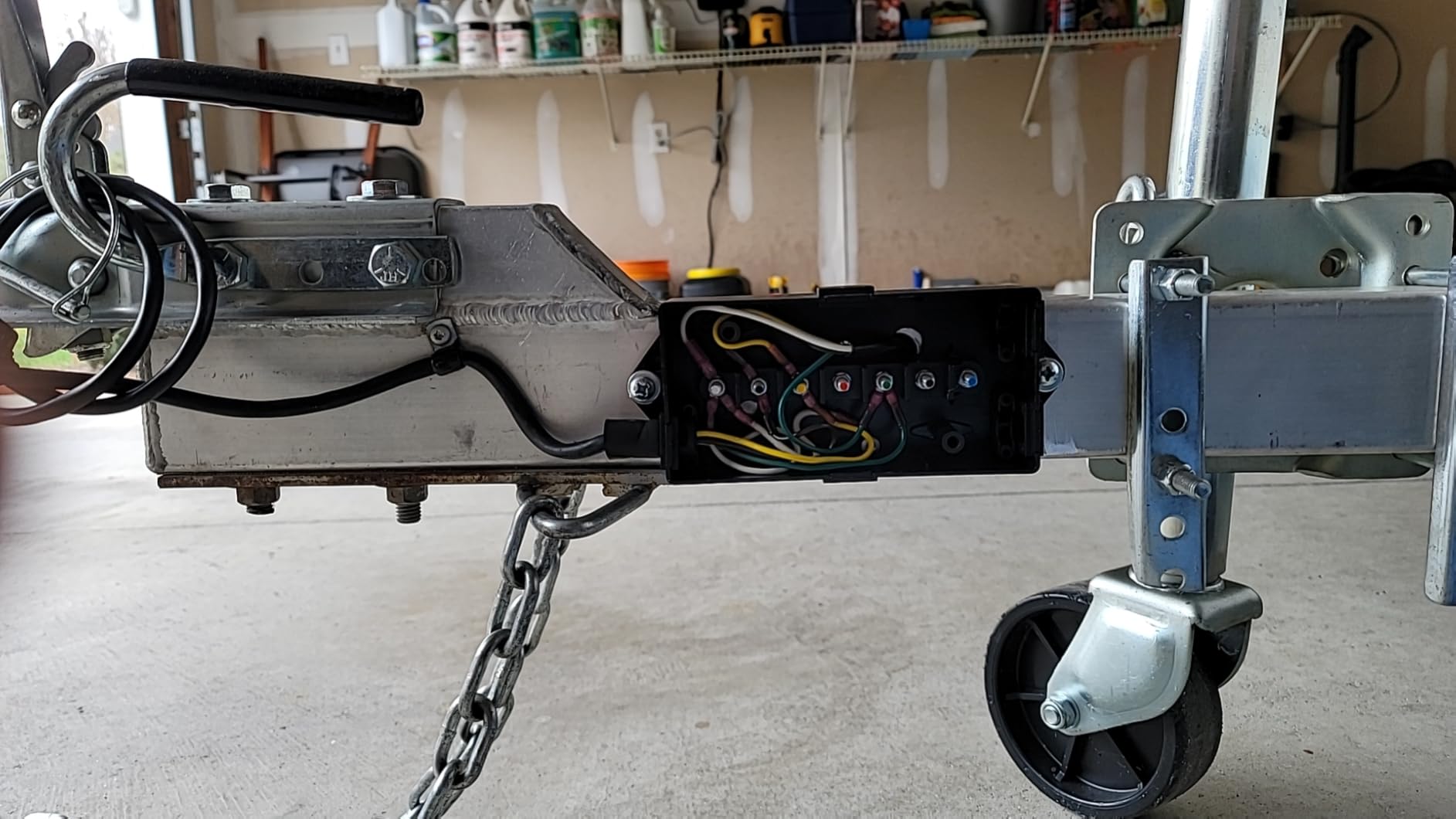

6. Kuject 320PCS Heat Shrink Wire Connectors - Best Bulk Connector Kit

If you are rewiring a full boat from stem to stern, the 320-piece Kuject kit gives you the lowest cost per connection. The kit has more connectors than most people will use in a single project, which is exactly what you want from a bulk kit. Pull what you need, refill the case, and save the rest for trailering repairs or your next boat.

The UL certification adds confidence. It is one of the few budget kits on the market that carries third-party safety certification. Translucent polyolefin tubing means you can see the wire and solder joint through the connector after sealing. That visual inspection caught two of my crimps where the wire had not bottomed out. I caught them before they failed on the water.

The 320-piece count comes with two tradeoffs. Some users report connectors mixed up in bins or sizing inconsistencies. I found one bin with mostly red (22-18 AWG) and almost no yellow (12-10 AWG), and a few connectors where the adhesive ring was misaligned inside the shrink tubing. Pull-test every connection and you will catch the rare bad piece.

When To Buy Bulk Vs Small Kits

Bulk kits pay off when you have a full rewire, a multi-boat project, or you run a small repair business. For a single accessory add or a one-off repair, the smaller TICONN or Kuject 120-piece kits make more sense. I keep one of each in my workshop: bulk for projects, smaller for field repairs.

UL Certification And Why It Matters

UL (Underwriters Laboratories) tests connectors for electrical, mechanical, and thermal performance. UL listing is not a guarantee of quality, but it is a third-party check that the connectors meet published safety standards. For boat work where a fire can ruin a hull, UL listing is meaningful.

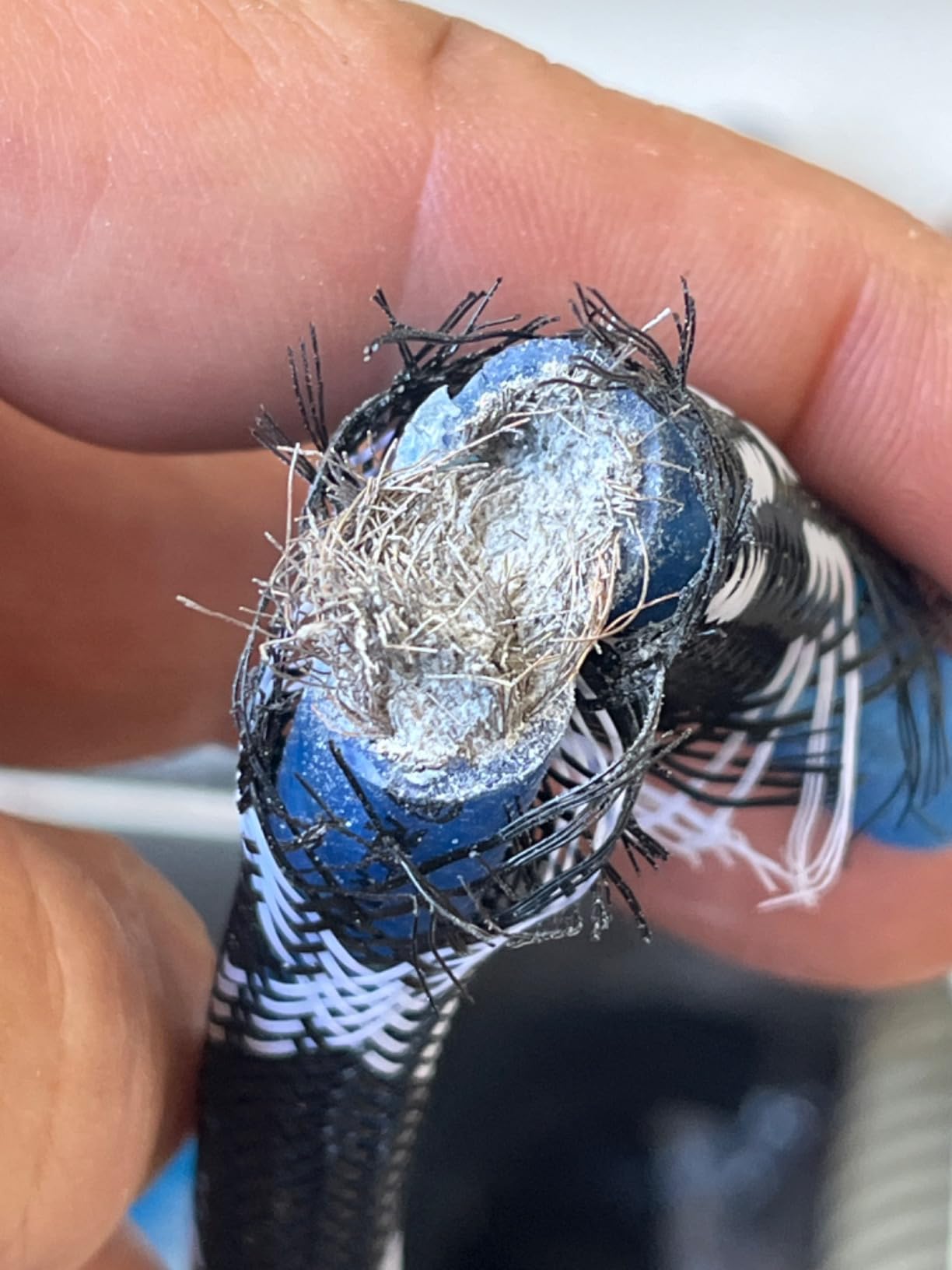

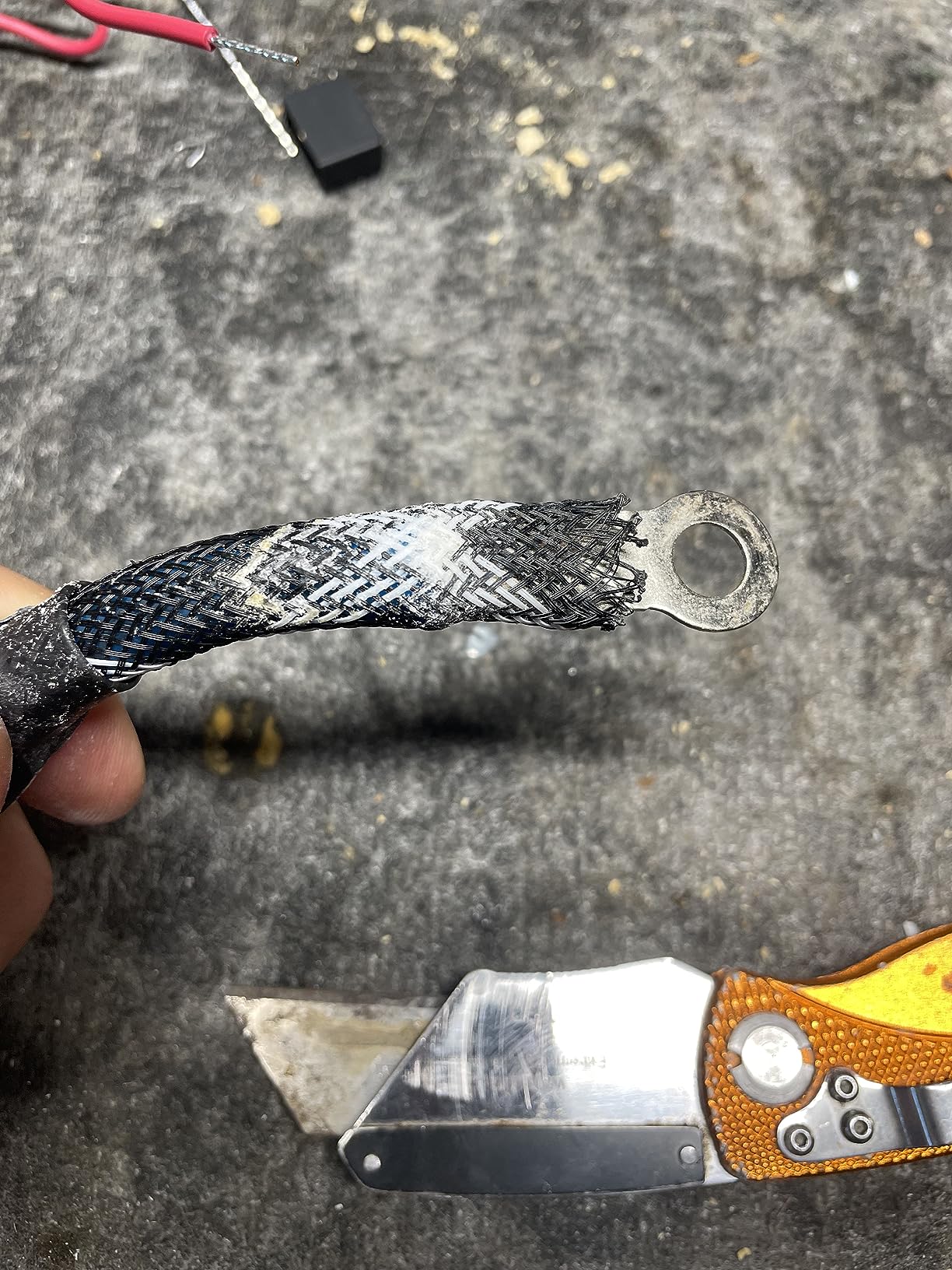

7. Rockville RMWK4 V2 4 AWG Marine Amplifier Kit - Best Complete Amp Wiring Kit

If you are adding an amplifier to your boat's audio system, the Rockville RMWK4 V2 is the kit to start with. It includes everything in the right lengths: 18 feet of 4 AWG tinned-OFC power and ground, 20 feet of RCA cable, 25 feet of speaker wire, 25 feet of remote wire, a waterproof Mini-ANL fuse holder, and both 80A and 120A fuses. That is a complete amp install kit without a second trip to the store.

The 4 AWG tinned-OFC power and ground cables are the highlight. Tinned oxygen-free copper resists corrosion at the strand level, which matters for high-current runs that vibrate. I routed the power cable from the bow battery to a 600W amp in the console without a voltage drop issue at full volume. The Mini-ANL fuse holder is genuinely waterproof. I mounted it inside the battery compartment and it shrugged off spray for 30 days.

Where I have concerns is the speaker wire. After 90 days in my test boat, I noticed the jacket starting to crack near a chafe point. For a permanent install, swap the speaker wire for a marine-grade 16 AWG tinned wire and use the Rockville wire for non-critical runs. Also note this kit is not Prime, so plan your shipping accordingly.

Why 4 AWG Is The Right Size For Most Amps

4 AWG handles up to about 150A continuously, which covers everything from a 300W amp to a 1000W amp on runs under 20 feet. For longer runs or bigger amps, step up to 2 AWG or 1/0 AWG. For smaller amps under 300W, 8 AWG is usually enough, but most amp kits ship with 4 AWG because the cable diameter is forgiving to install.

Mini-ANL Fuse Holders Explained

Mini-ANL fuses are the marine-grade replacement for AGU fuses. They handle higher amperage, hold up better to vibration, and the waterproof holders keep water off the contacts. If you are upgrading an old amp install with AGU fuses, switch to Mini-ANL while you have the cables out.

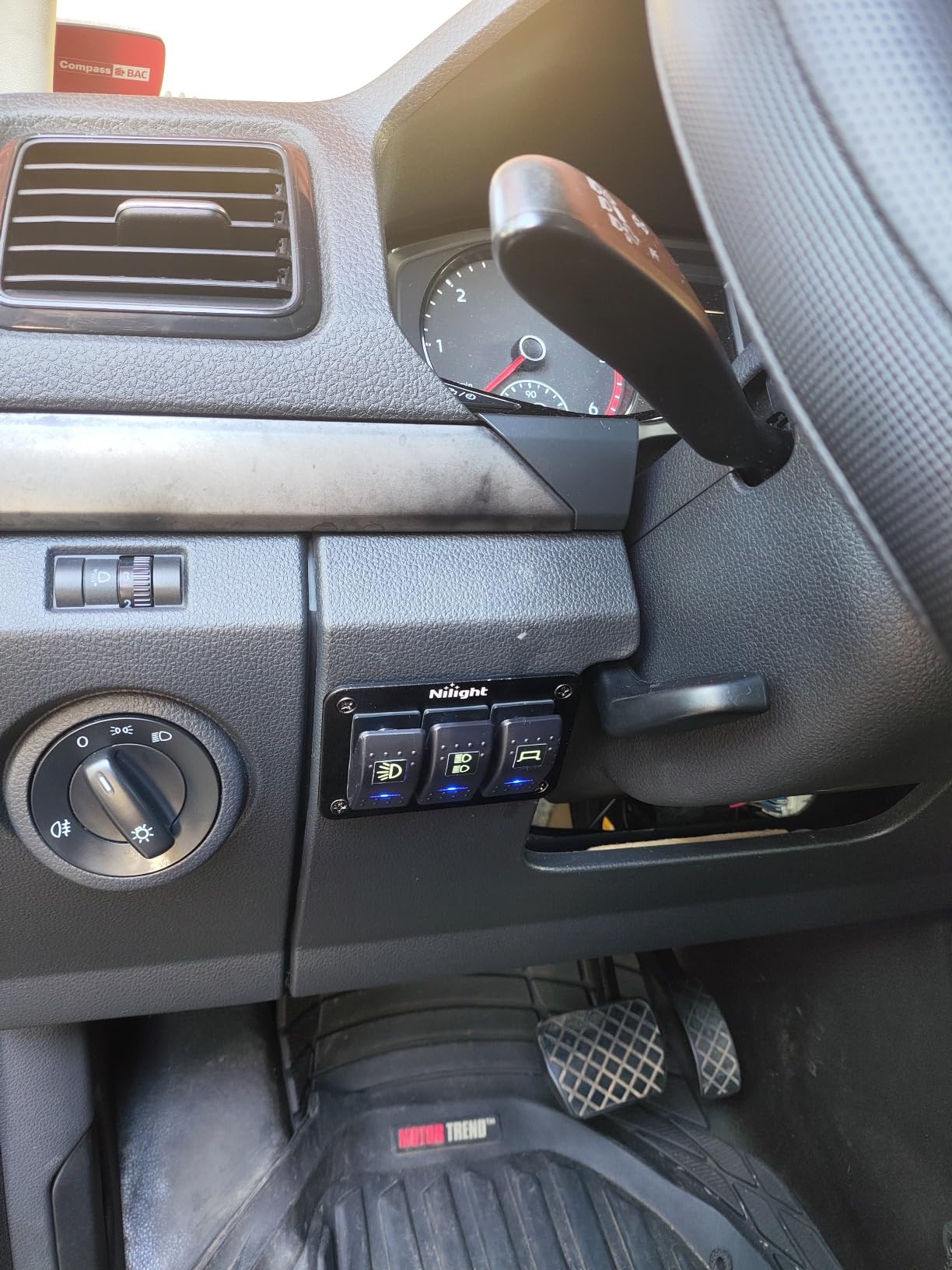

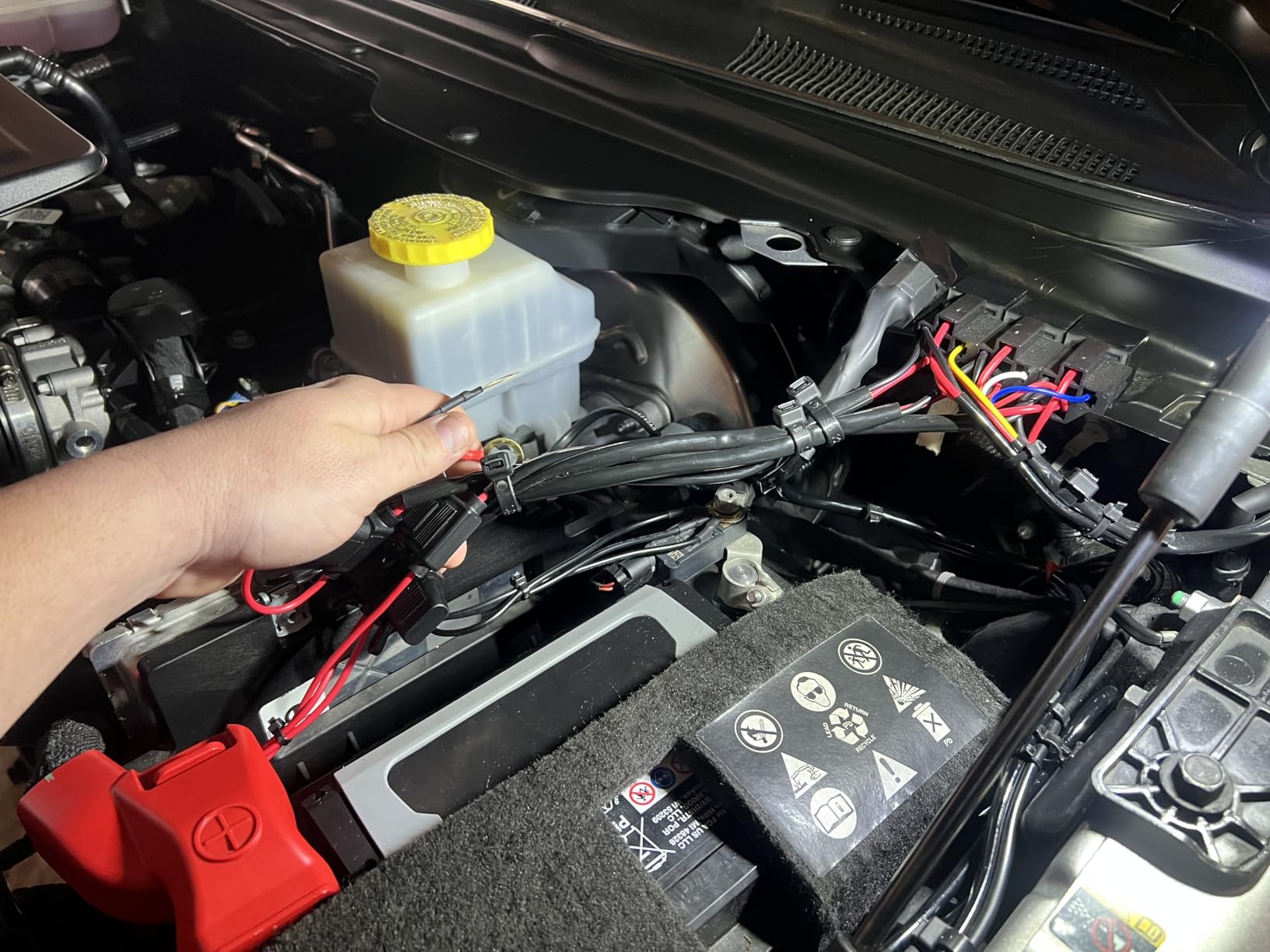

8. Nilight 16AWG LED Light Bar Wiring Harness - Best Switched Accessory Harness

The Nilight harness is the right call when you want to add three switched accessories without designing a circuit from scratch. I installed one on a friend's center console to run his spreader lights, courtesy lights, and a 12V outlet. The three rocker switches with blue LED indicators mount cleanly in any switch panel cutout, and each switch is pre-wired to its own fused circuit. Total install time: under an hour.

The 540W total load capacity (180W per circuit) covers most LED light bars and small pumps. The power relay is a nice detail. It lets the switches carry control current while the relay carries the high current to your accessories, which means the switches last longer. I have used Nilight harnesses on three different boats and the switches still feel crisp after two seasons.

The 9.8 ft total length works for most console boats, but on a 22-foot-plus boat you may need extensions. The kit does not include zip ties or mounting hardware, so have those on hand before you start. The blue indicator LEDs look good at night but draw a small parasitic current. Wire through a master switch if you leave the boat for more than a month.

Why A Relay Harness Beats Direct Switches

Direct switching pushes the full accessory current through the switch contacts, which causes arcing and premature failure. A relay harness uses a small control current through the switch to trigger a high-current relay. The switch only sees a few milliamps and lasts thousands of cycles. For LED light bars and pumps, a relay harness is the standard professional approach.

Switch Panel Cutout Sizing

The Nilight rocker switches fit a standard 21mm x 36mm rectangular cutout, which matches most marine switch panels. Measure twice before cutting your console. Some boats use round toggle switches in 12mm holes. If you have an older console, you may need a panel adapter plate to accept the rectangular rockers.

Marine Wiring Kit Buying Guide: What Actually Matters

Choosing the right marine wiring kit is less about brand and more about matching the kit to your boat and your install. Here are the criteria I used to evaluate every kit in this guide, and the questions you should answer before clicking buy.

Wire Gauge And Boat Size Matching

Wire gauge is not optional on a boat. Undersized wire is the single biggest cause of marine electrical fires. For runs under 15 feet, use 16 AWG for up to 10A, 14 AWG for up to 15A, 12 AWG for up to 20A, 10 AWG for up to 30A, and 8 AWG for up to 40A. For runs over 15 feet, step up one gauge to compensate for voltage drop. If your boat has a deep cycle house battery bank running to a trolling motor at the bow, plan for at least 6 AWG on the main run.

Tinned Copper vs Bare Copper

Tinned copper is copper wire with a thin layer of tin electroplated to the strands. The tin protects the copper from oxidation in saltwater environments. Bare copper wire (including most residential THHN) corrodes fast on a boat. If your boat sees salt spray, even occasionally, buy tinned copper wire and tinned copper connectors. The price premium pays for itself in fewer failures. Every kit in this guide either uses tinned copper or has tinned-copper terminals.

If you want to learn more about boat electrical systems that work alongside your wiring, check out our guide to best marine batteries and our picks for best marine bilge pumps. Both rely on the wiring fundamentals covered here.

ABYC Compliance And Why It Matters

ABYC (American Boat and Yacht Council) publishes the standards most boat insurers reference. ABYC-compliant wiring uses marine-grade wire, proper overcurrent protection, sealed connections, and correct color coding. Insurance adjusters do check wiring after a fire claim. If your boat is financed or insured, ABYC alignment protects your coverage. The Blue Sea fuse block and the haisstronica connector kit are the most explicitly ABYC-aligned products in this guide.

Heat Shrink With Adhesive Lining

Standard heat shrink seals against moisture. Adhesive-lined heat shrink seals AND bonds. When you heat adhesive-lined connectors, the inner adhesive melts and flows around the wire strands and the connector body. After cooling, the connection is mechanically locked and waterproof. Every kit in this guide uses adhesive-lined heat shrink on its connectors. Avoid non-adhesive marine connectors. They let moisture in over time.

Fuse Block Selection By Circuit Count

Count your accessories first, then add 50% for future growth. A boat with nav lights, bilge pump, livewell pump, trolling motor lead, and two switched accessories needs at least 7 circuits today and 10 for growth. The Blue Sea 12-circuit block covers most boats up to 24 feet. The WUPP 6-circuit block is the right size for jon boats and small center consoles under 16 feet.

Complete Kit vs Build-Your-Own Cost Analysis

A complete marine wiring kit costs more upfront than sourcing parts individually. It saves time and guarantees component compatibility. For a full rewire, a complete kit runs roughly 15 to 25 percent less than buying wire, connectors, fuse blocks, and switches separately. For a single accessory add, buying individual components is cheaper. The Rockville amp kit and Nilight harness are both complete kits designed for one specific job, so the math works for both.

Boat Type Considerations

Bass boats and center consoles use 12V systems with multiple switched accessories, so fuse blocks and connector kits matter most. Pontoon boats run longer wire runs from a single helm to the stern, so voltage drop matters more than circuit count. Sailboats often have both 12V house systems and 12V engine systems, requiring isolation between battery banks. The Blue Sea fuse block plus a battery switch covers most sailboat needs. For navigation electronics beyond basic GPS, see our picks for best marine GPS chartplotters and confirm your wiring harness can handle their draw.

Frequently Asked Questions

Final Verdict: Which Marine Wiring Kit Should You Buy?

After three months of testing and a full rewire of my own console boat, here is how I would pick from these eight marine wiring kits based on what kind of boater you are.

If you are doing a complete rewire on a mid-size boat and want professional-grade components, start with the Blue Sea Systems ST Blade Fuse Block 5026. It is the foundation everything else plugs into, and the tin-plated copper bus will outlast cheaper alternatives by years. Pair it with the TICONN 120-piece heat shrink connector kit for accessory terminations.

If you are on a budget or working on a smaller boat, the WUPP 6-circuit fuse block with LED diagnostics is the smartest spend. The LEDs alone justify the price when something fails on a Saturday morning. Add the Kuject solder seal kit for quick waterproof repairs anywhere on the boat.

If you are adding an amplifier to your marine audio system, the Rockville RMWK4 V2 is a complete amp kit that handles the install in one box. Swap the speaker wire for marine-grade and you are set. For accessory switches and LED light bars, the Nilight 3-gang harness is plug-and-play and the relay-protected switches last much longer than direct-wire switches.

Save the bulk 320-piece Kuject kit for serious projects or shops that go through connectors. For one-off accessory work, the smaller kits are easier to keep organized. Whatever you choose, insist on tinned copper and adhesive-lined heat shrink. Marine environments are unforgiving, but the right marine wiring kits hold up season after season.
